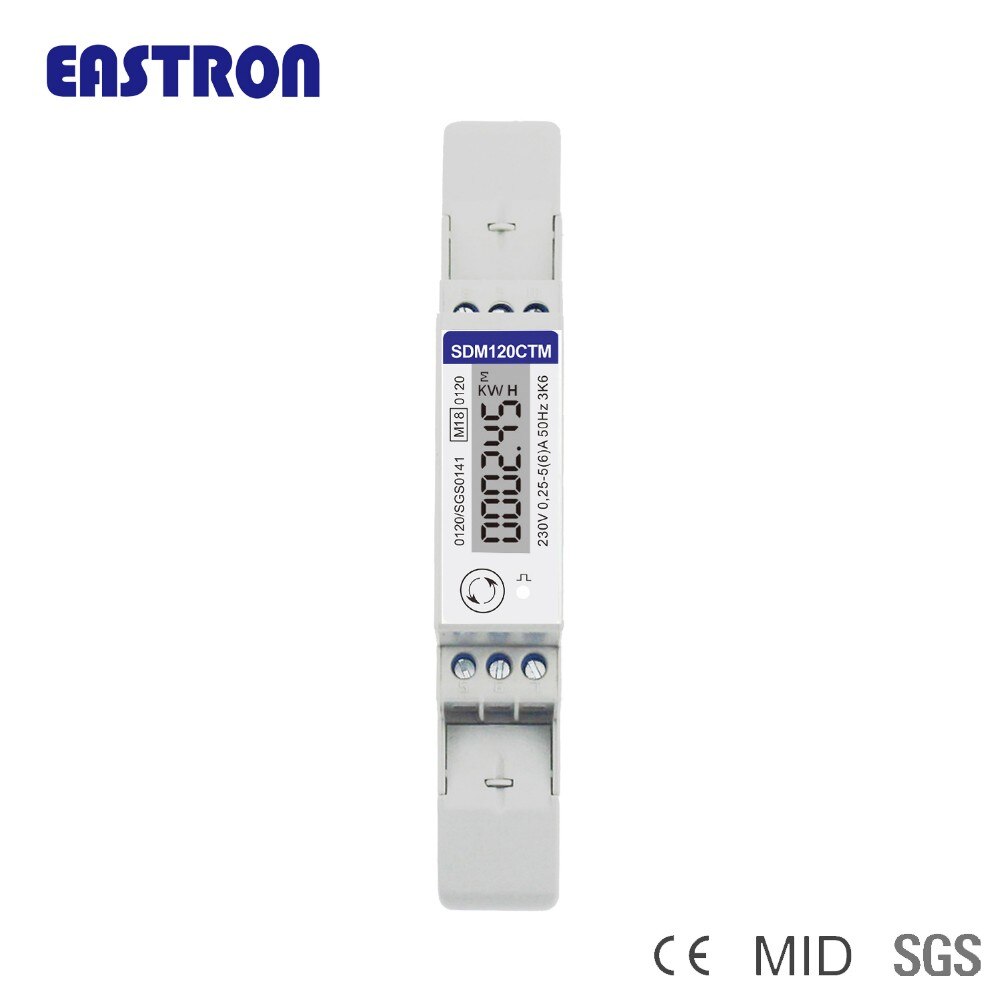

SDM120CT-M RS485 kwh,kvarh,U,I,P,Q,PF,Hz,dmd Measurement, DIN rail CT Connected energy meter NON-MID
Specifications:
- Voltage Range: 176~276V AC
- Voltage AC (Un): 230V
- Rated Voltage: 230V
- Pulse output 2: 0.001(default) /0.01/0.1/1/10/100/1000 kWh/kVarh (configurable)
- Pulse output 1: 1000imp/kWh (default)
- Power Supply: AC
- Power consumption: <2W/10VA
- Phase: Single Phase
- Overcurrent withstand: 30Imax for 0.01s
- Output Voltage: 90*67.5*17.5mm
- Operating Temperature: Minus 25 degrees Celsius to 55 degrees above zero
- Model Number: SDM120CT-M
- Measuring Energy Range: 99999.9kwh
- Max. Reading: 99999.9kWh
- Max Operating Current: 150A & Above
- Impulse voltage withstand: 6KV-1.2uS wavform
- Frequency: 50/60Hz(±10%)
- DIY Supplies: Electrical
- Display Type: Digital Only
- Dimensions: 90*67.5*17.5mm
- Brand Name: YISITONG
- Base Current (Ib): 0.1VAC
- Accuracy Class: Class 1 IEC62053-21
- AC voltage withstand: 4KV for 1 minute
