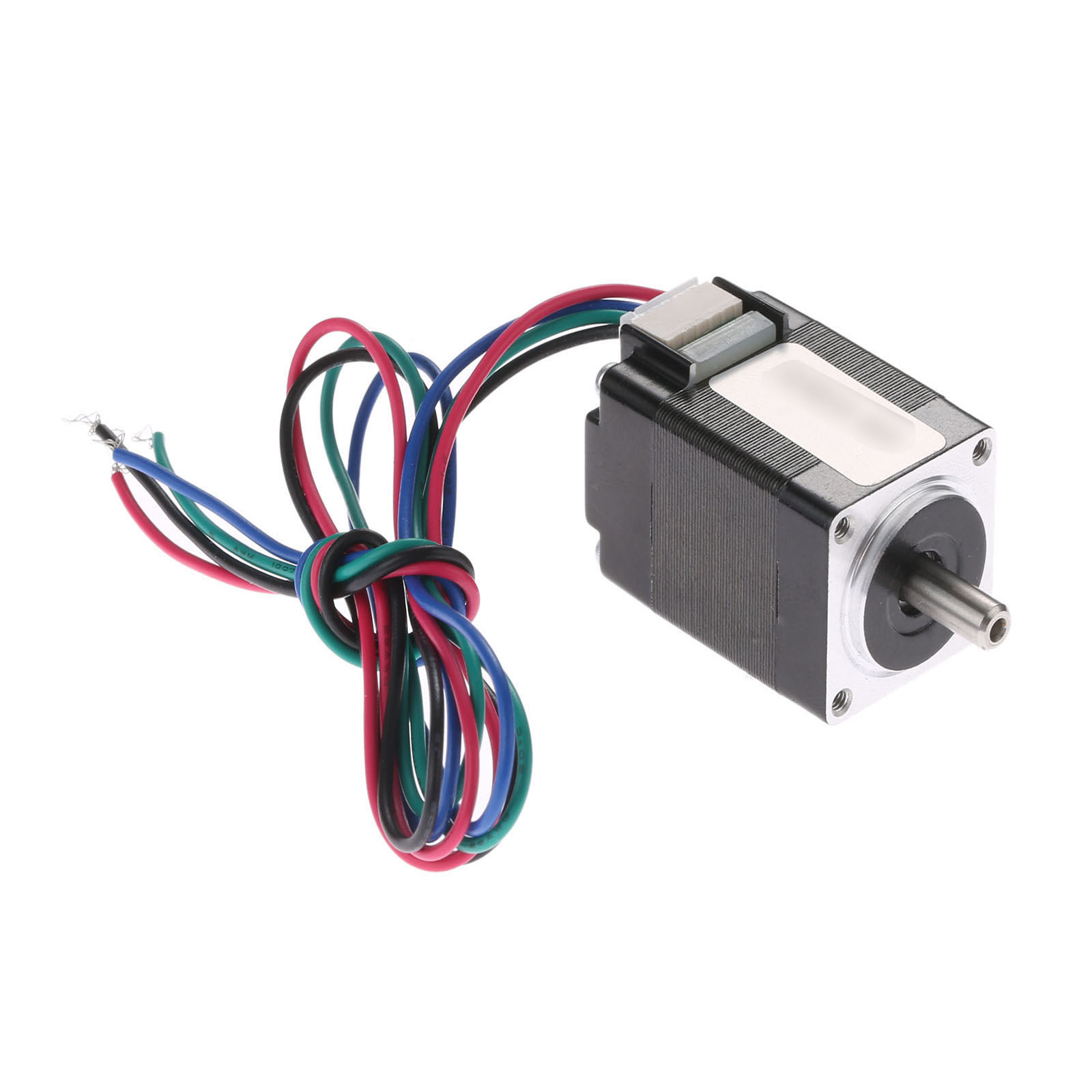

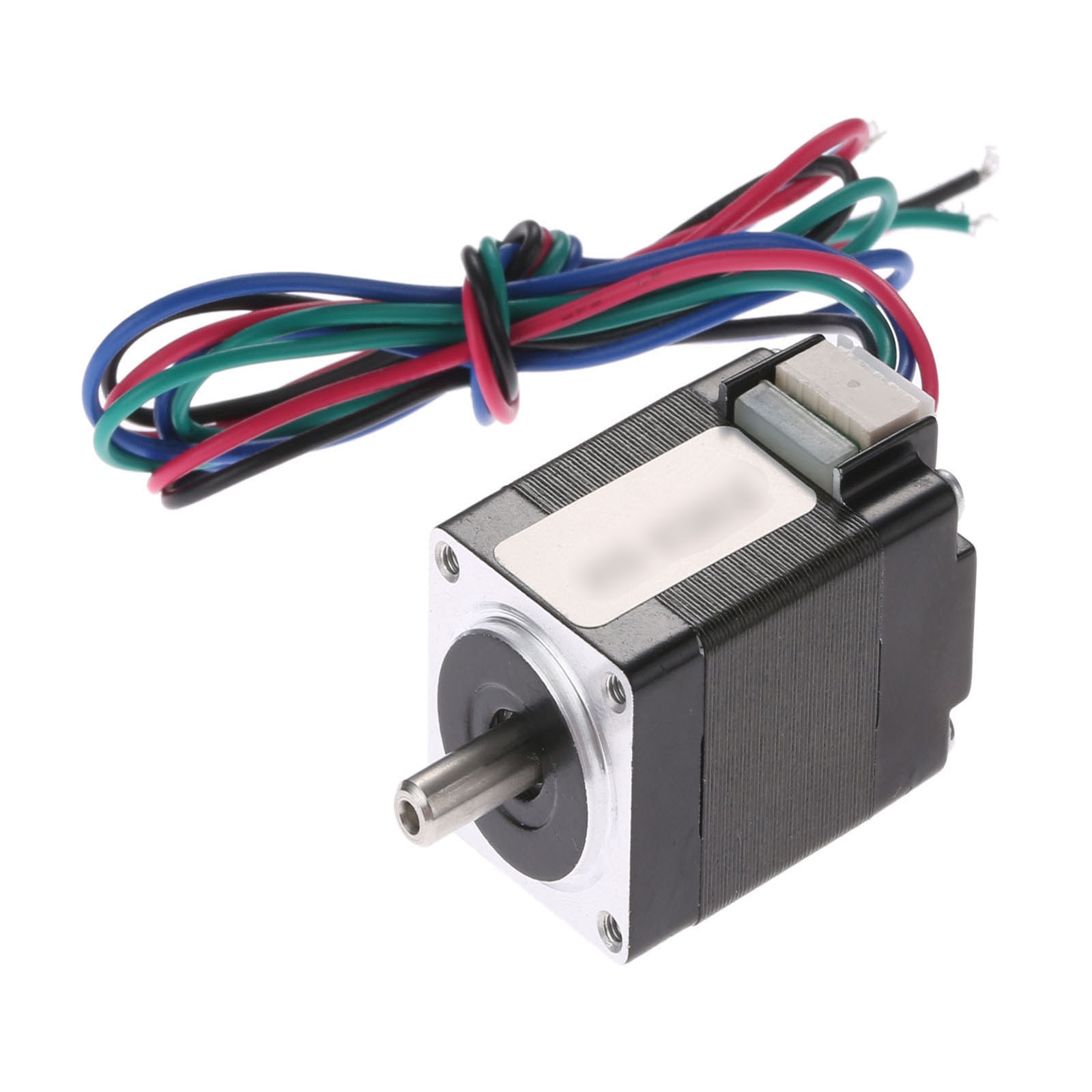

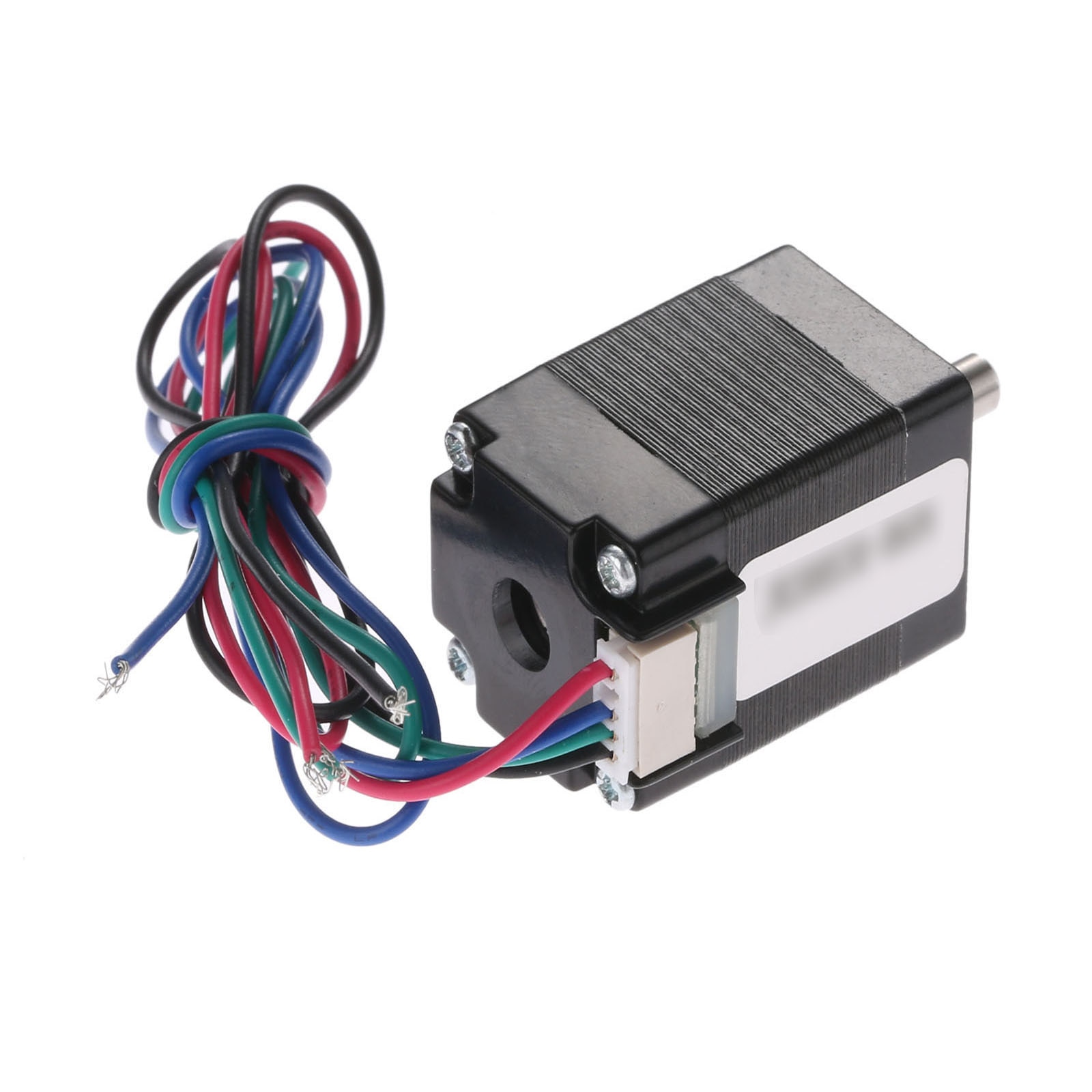

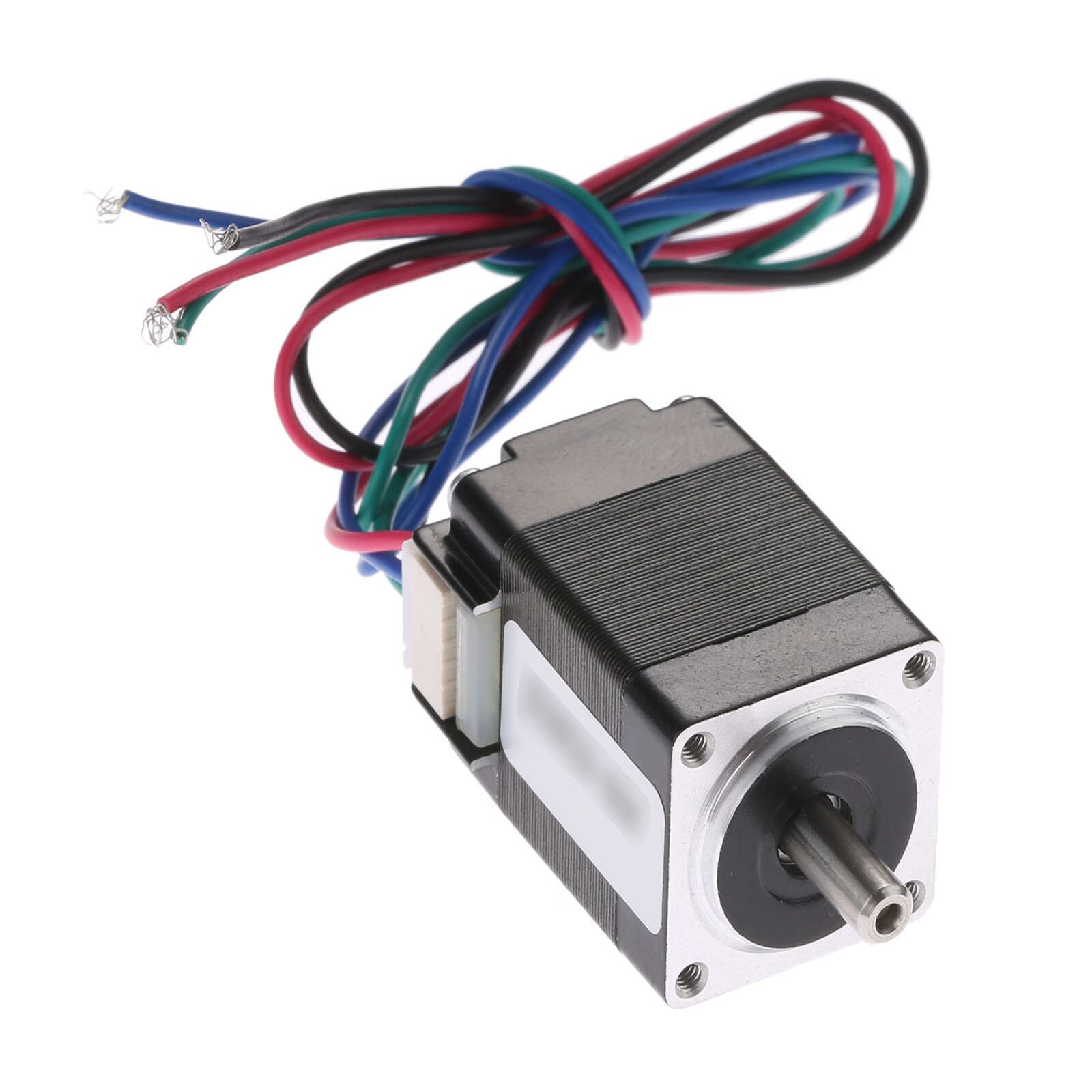

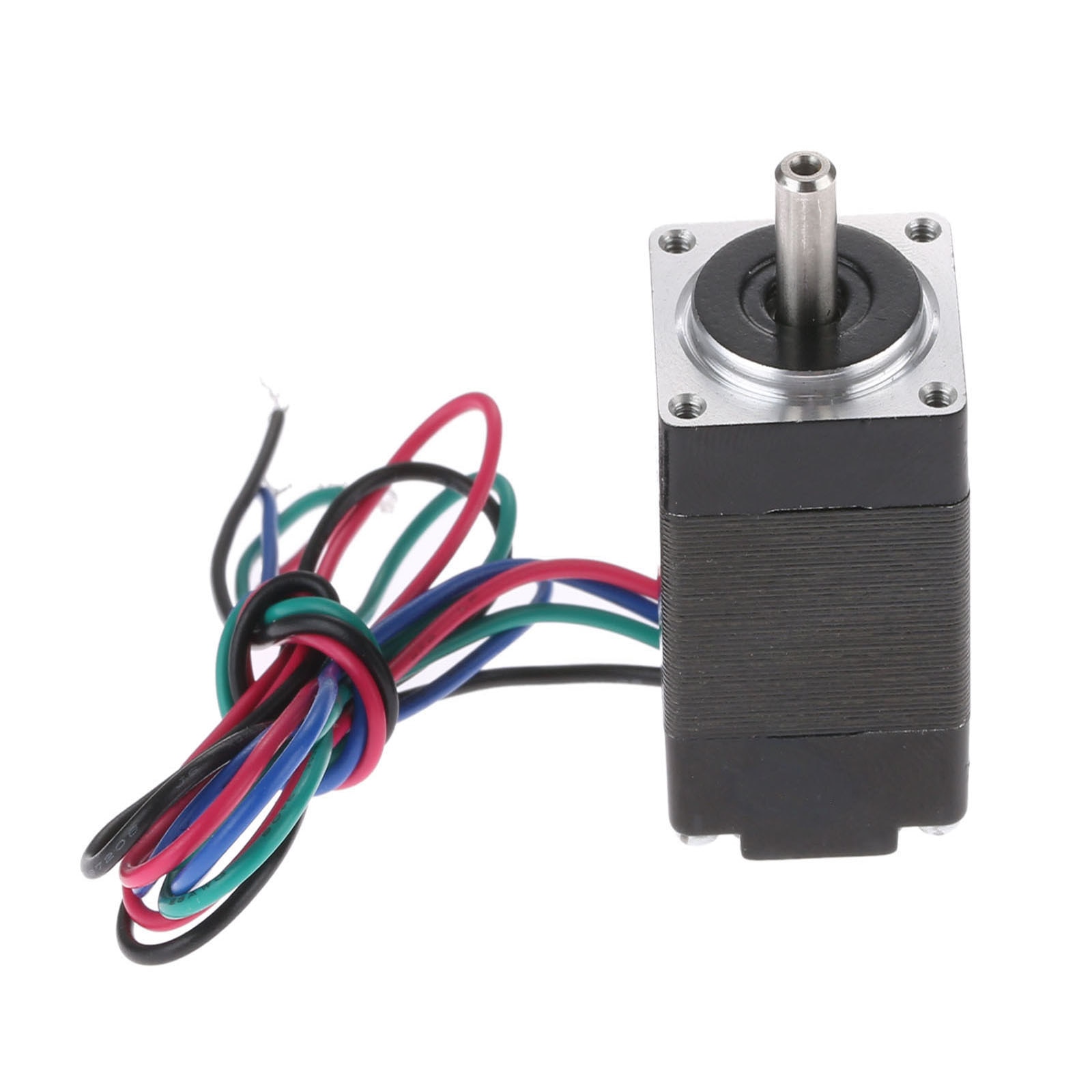

NEMA8 33mm Stepper Motor 1.8 Degree 2 Phase Nema 8 Bipolar Stepper 20 Hybrid For CNC Engraving Machine 3D Printer 4 Lead 0.6A
Specifications:
- Type: Hybrid
- Temperature Rise: 80℃max.
- Step Angle(degrees): 1.8
- Shaft Radial Play: 0.02Max. (450g-load).
- Shaft Diameter: 4mm
- Shaft Axial Play: 0.08Max. (450g-load).
- Phase Resistance: 6.5ohms;
- Phase: 2
- Number of Leads: 4.
- Motor Type: Bipolar Stepper;
- Motor Length: 33mm/1.3in.
- Model Number: JK20HS33-0604
- Max. radial force: 28N (20mmfrom the flange).
- Max. axial force: 10N
- Manufacturer Part Number: 20HS33-0604;
- Insulation Resistance: 100 MΩ Min. ,500VDC.
- Inductance/phase: 1.6mH±20%;
- Holding Torque: 200g.cm/1.96N.cm/2.8oz.in;
- Front Shaft Length: 8mm
- Frame Size: 20mm x 20mm/0.8in x 0.8in.
- Dielectric Strength: 500VAC for 1minute.
- Current / Phase: 0.6A
- Certification: UL
- Certification: ROHS
- Certification: ISO
- Certification: ce
- Certification: CCC
- Cable length: 300mm/12in.
- Ambient Temperature: -20℃~+50℃.
