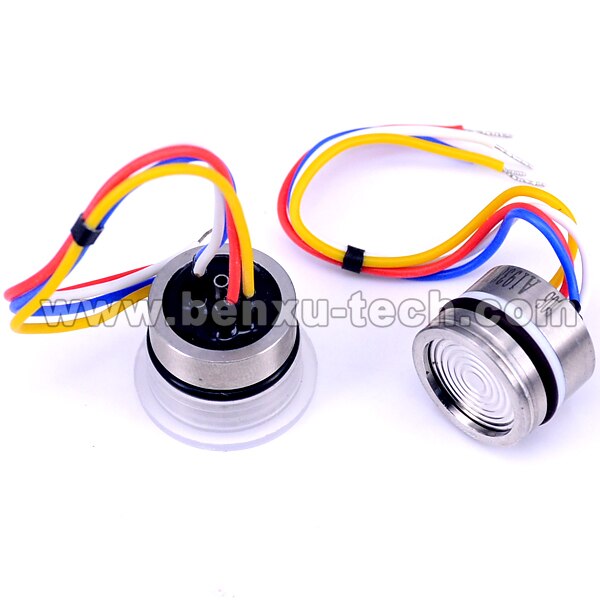

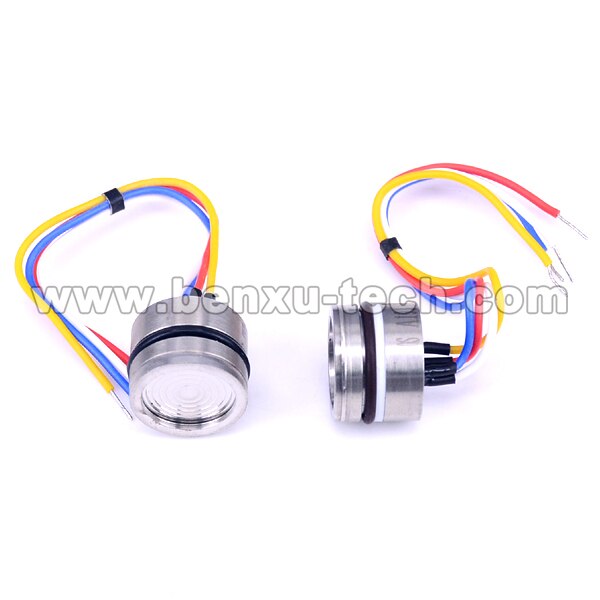

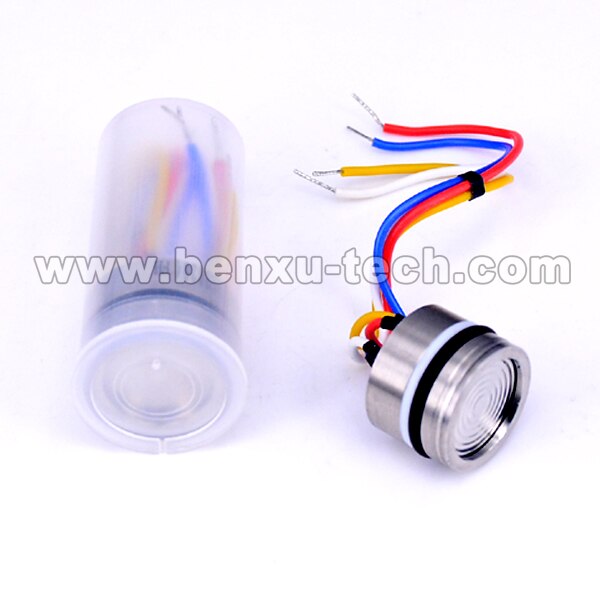

Absolute Pressure Piezoresistive Silicon Pressure Sensor
Specifications:
- Connection: 4 wires
- Storage temperature: -40 to 125C
- Shock: 100g(10ms)
- Sealing ring: NBR or fluorine rubber
- Response time: less than 1ms(up to 90%FS)
- Pressure Type: Absolute pressure
- Operating temperature: -40 to 125C
- Oil filling: Silicon oil
- Model Number: BX-PSC19
- Mechanical vibration: 20g(20-5000Hz)
- Measured medium: All the liquids and gases compatible with 316L
- Max Measuring Range: 59 Bar & Under
- Insulation resistance: more than 200Mohms/250VAC
- Input impedance: Constant current:2-5kohms Constant voltage:3-18kohms
- Housing material: 316L
- Electrical connection: silicon soft wire
- Diaphragm material: 316L
- Brand Name: BENXU
