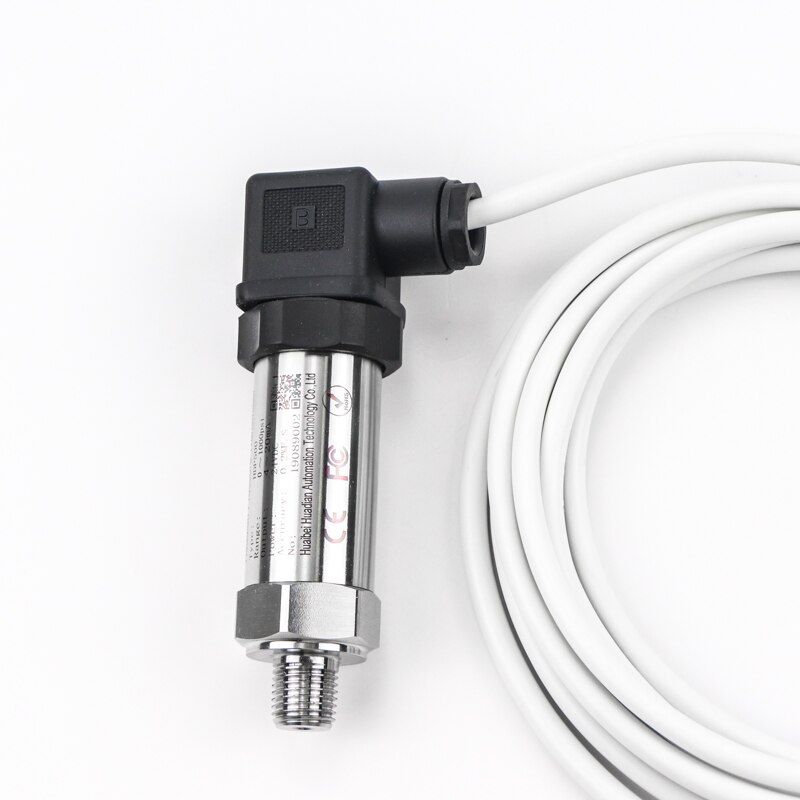

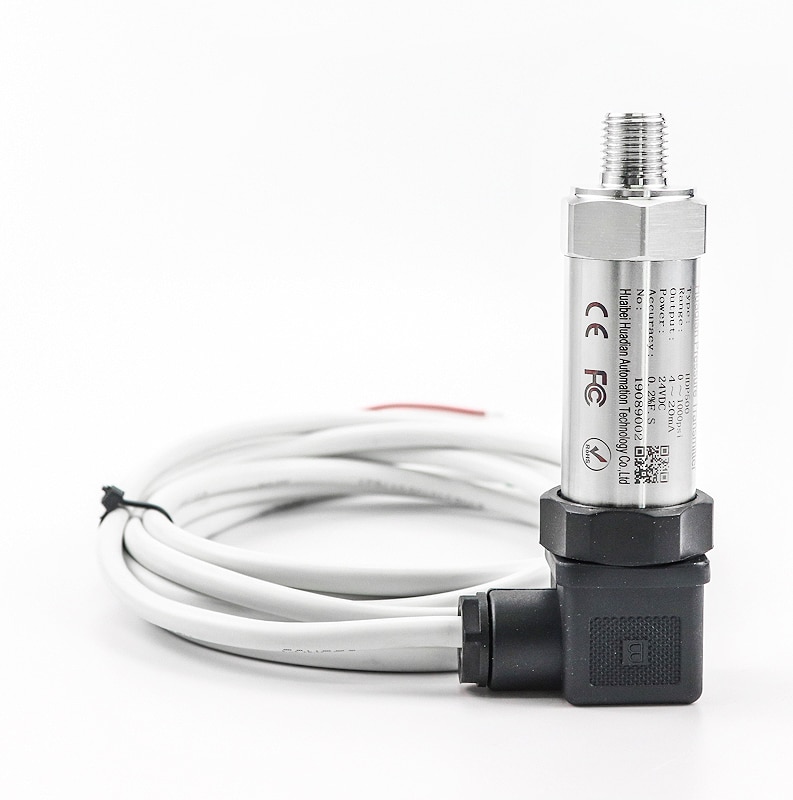

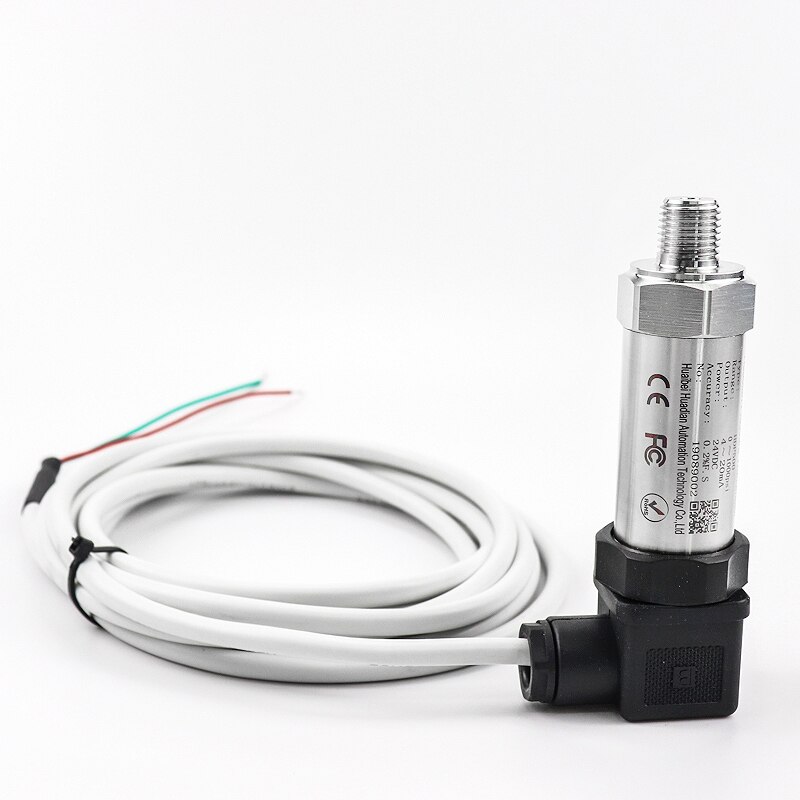

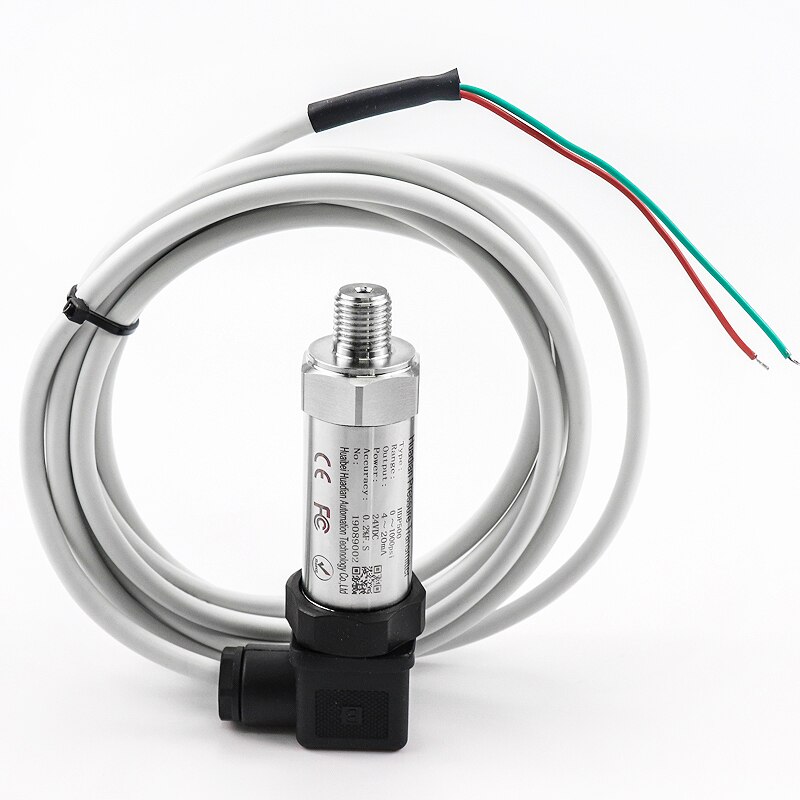

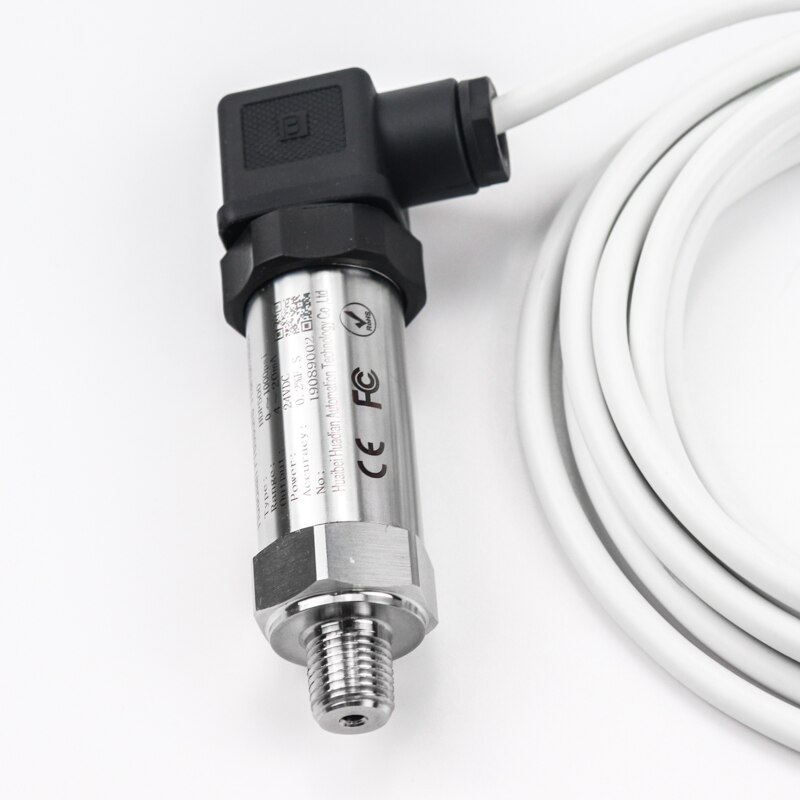

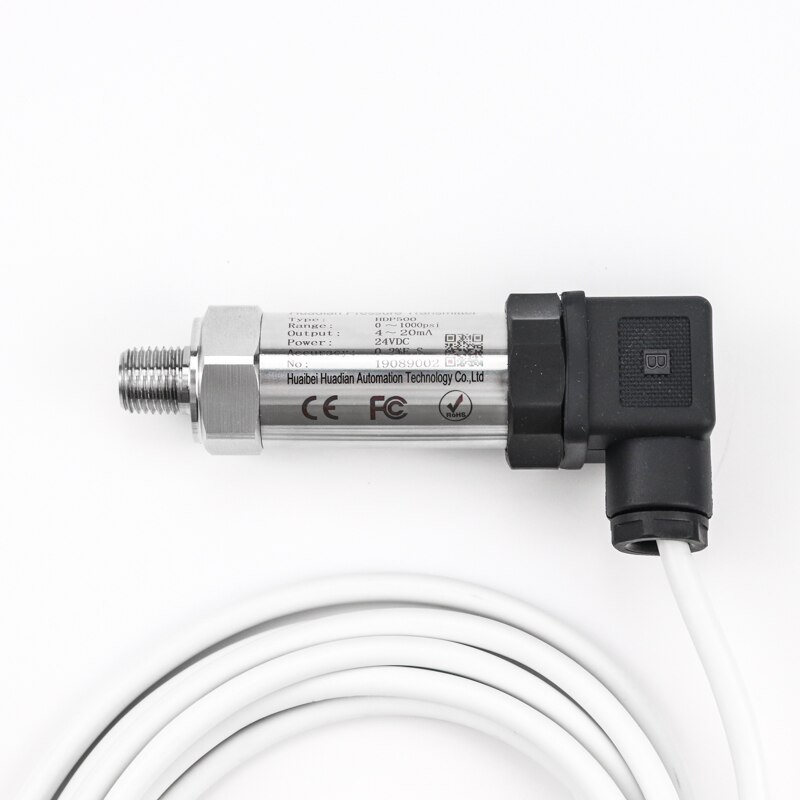

2-wire hydraulic oil digital pressure transmitter 200 bar 4-20ma liquid pressure sensor
Specifications:
- Protection grade: IP65
- Product name: 4-20ma liquid pressure sensor
- Process connection: M20*1.5(thread),1/2 NPT,G 1/2,Others
- Pressure type: Gauge pressure,Absolute pressure
- Power Supply: 12-36VDC
- Overload pressure: 200%F.S
- Output Signal: 4~20mA,1~5V,0~10V,RS485
- Model Number: HDP500 4-20ma liquid pressure sensor
- Model Number: HDP500
- Medium Temperature: -40~80Deg.C
- Measuring Media: Gaseous,Liquids,Water, oil,fuel etc
- Max Measuring Range: 400 Bar & Above
- Linearity: 0.03%
- Housing material: SS304,SS316
- Full-load consumption: 2w
- Electrical connection: Hirschmann, Direct lead , Aeronautical plug etc
- Display: No display , LCD,LED (optional)
- Certificates: CE, ISO , FCC, SGS etc
- Cable length: Standard 2 meter
- Accuracy: 0.25%F.S, 0.5%F.S
